AOYUE Int 862_Pre-heating Systems-

HOME > PRE-HEATING SYSTEMS > AOYUE INT 862

DESCRIPTION SPECIFICATION PACKING LIST

Features:

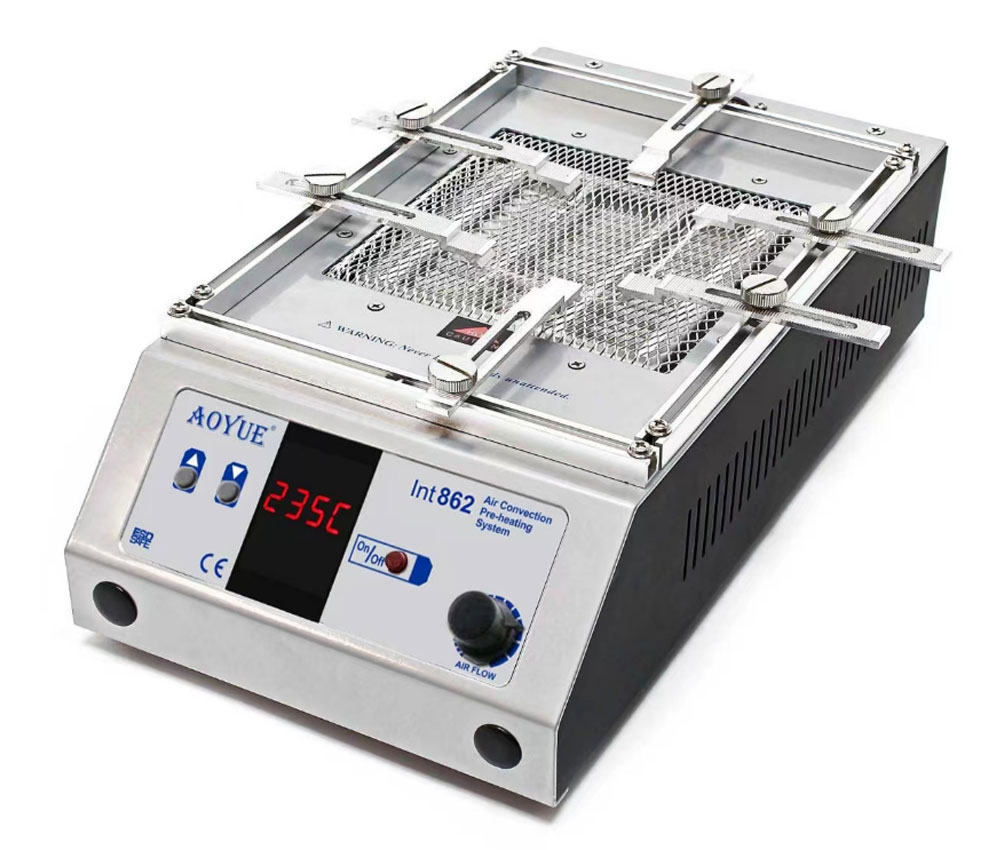

The 862 PCB pre-heating system combines infrared and air convection for quicker and consistent PCB heating.

It includes a digital temperature display and push-button controls for setting and monitoring both target and real-time temperatures.

Users can set temperatures via buttons and control airflow speed using a knob.

Microprocessor Controlled system.

Versatile Integrated Board Holder

Infrared and air convection combination for efficient PCB heating

Digital temperature display for real-time monitoring

Push-button controls for setting target temperatures

Ability to adjust real-time temperatures via buttons

Airflow speed control using a knob for precise adjustments

SPECIFICATIONS Specifications are subject to change without prior notice.
POWER INPUT：	available in 110V / 220V
WEIGHT：	2.5 Kg
MAIN STATION DIMENSION：	192 x 100 x 325 mm
Pre-Heating Station
POWER CONSUMPTION：	500W
Temperature Range:	100°C- 280°C
HEATING ELEMENT：	Quartz Infrared

AOYUE Int 853A PRO Package Content
1 unit	Int 862 Main Station
1 pc.	Power Cord
1 pc.	Instruction Manual
