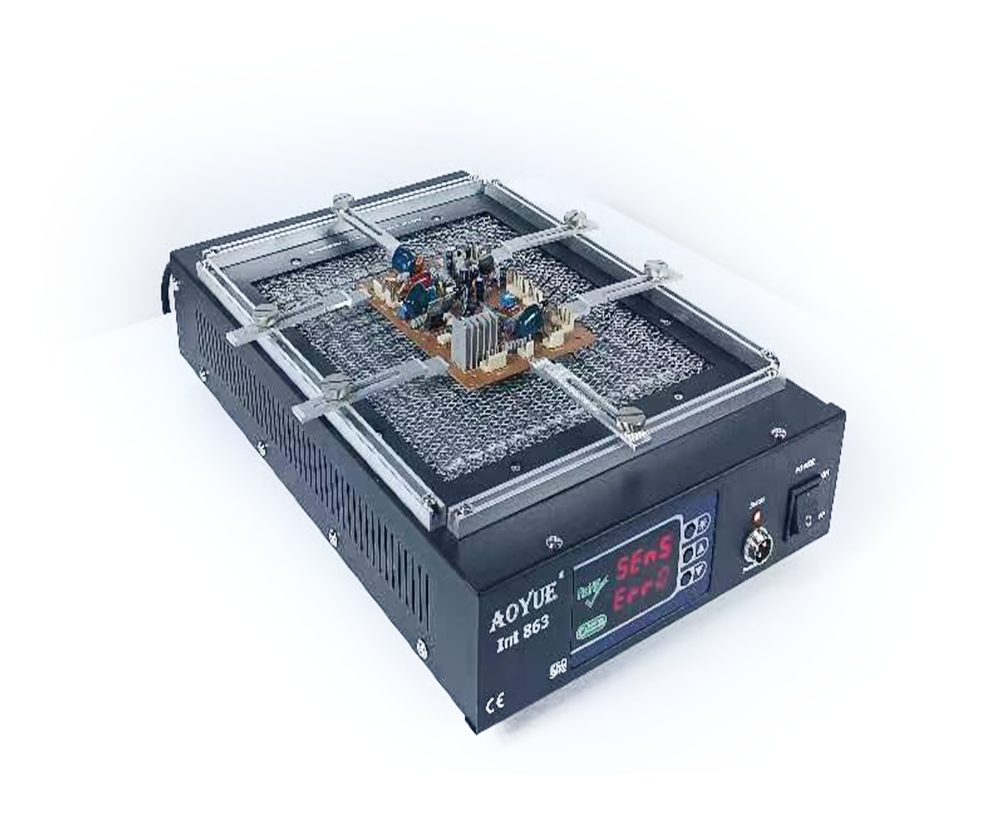

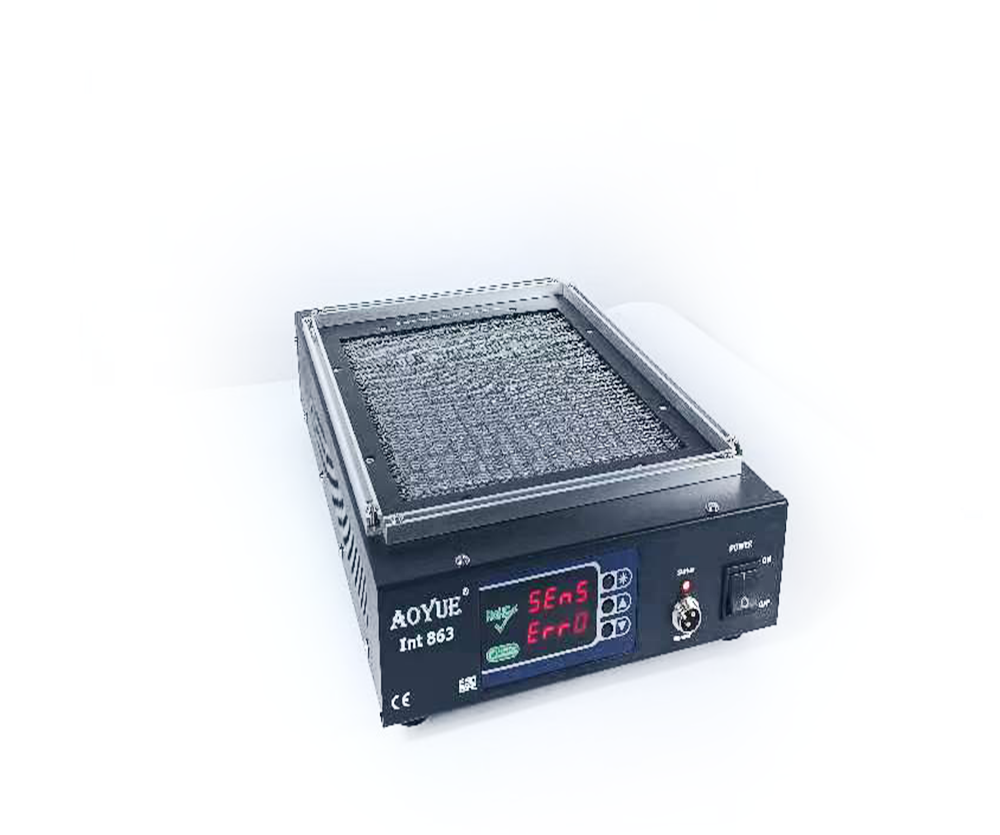

HOME > PRE-HEATING SYSTEMS > AOYUE INT 863

    AOYUE Int  863AOYUE Int  863AOYUE Int  863AOYUE Int  863AOYUE Int  863
    • AOYUE Int 863
    • Favorite
      Click to buy

    DESCRIPTION SPECIFICATION PACKING LIST

    Features:

    • Microprocessor-controlled ESD safe unit, utilizes infrared heat wave technology.
    • Enhanced pre-heating area to fit large PCBs and minimizes board warping
    • Easy-to-adjust pre-heat temperatures with digital display.
    • Built in extra temperature sensor for more accurate monitoring of board temperature.
    • Internal temperature sensor for stable temperature measurements.
    • Closed loop system for precise temperature control and monitoring at board level.
    • Profile adjustment functionality for automating reworking tasks under user defined temperature and time settings.
    • Temperature and Profile settings are stored into CPU memory for easy configuration.
    • Compatible for use with either hot air or IR top heating systems.

                                                                    SPECIFIATION                                                                                         Specifications are subject to change without prior notice.
     POWER INPUT:  available in 110V / 220V
    WEIGHT: 7 Kg
    MAIN STATION DIMENSION:  410 x 260 x 80 mm
    Pre-Heating Station
    POWER CONSUMPTION:  900W
    TEMPERATURE RANGE:  50°C- 400°C
    HEATING ELEMENT:  Quartz Infrared
     HEATING SURFACE:  250 x 200 mm

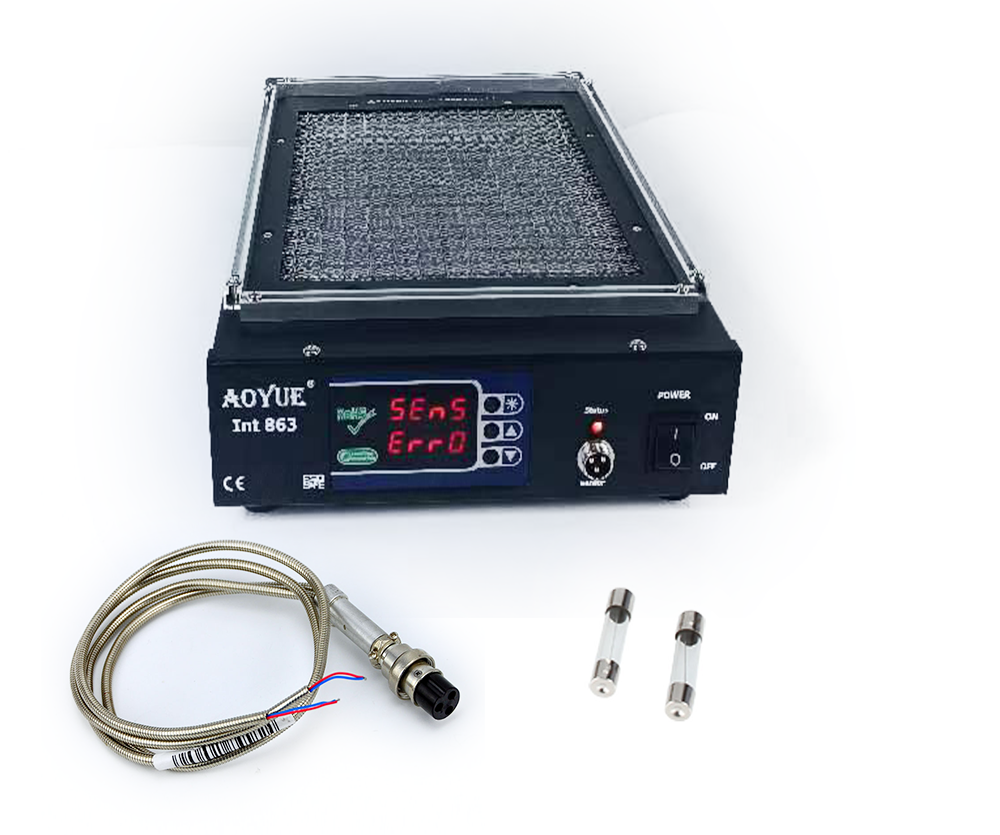

    AOYUE Int 863  Package Content
    1 unit Int 863 Main Station

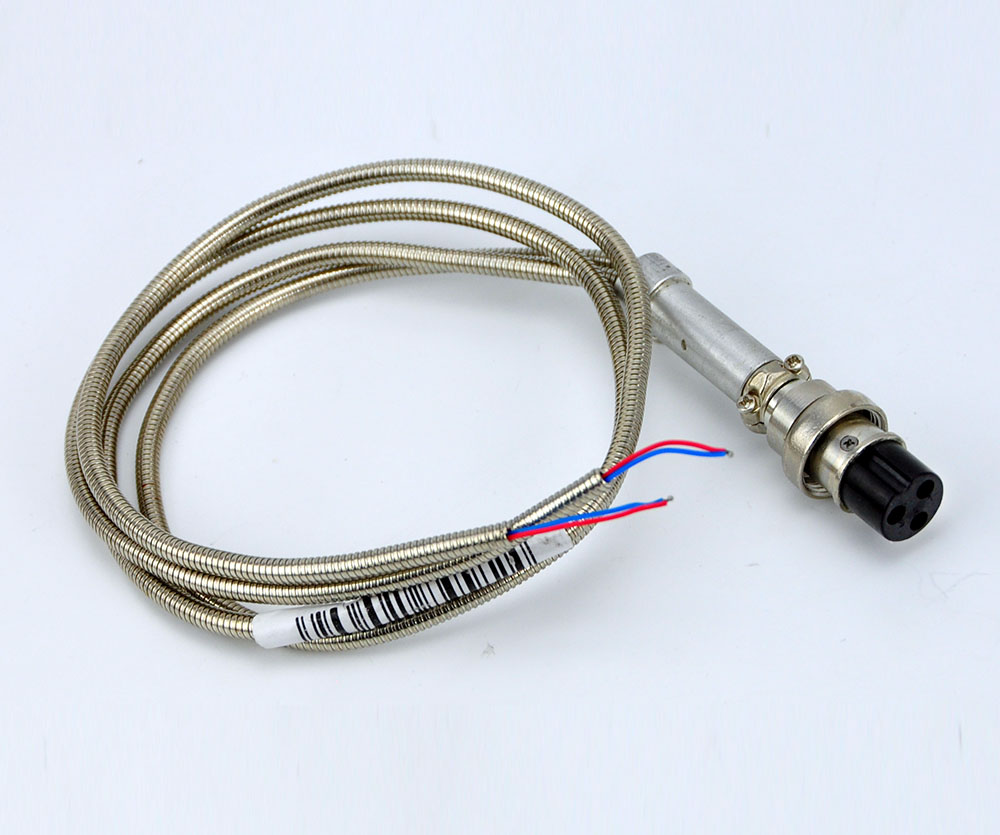

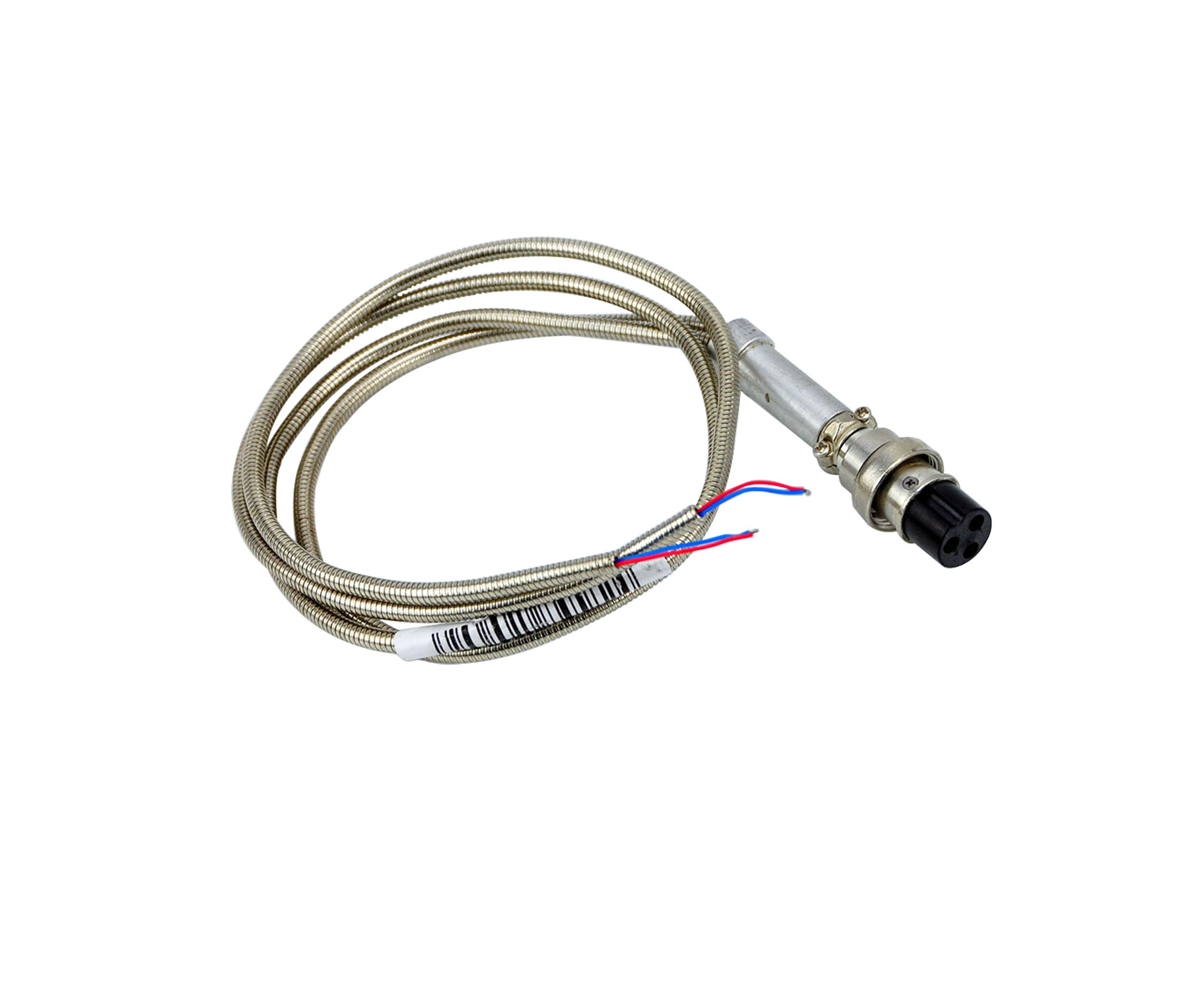

    1 pc. Sensor
    1 pc. Power Cord
    1 pc. Instruction Manual
