AOYUE Int 2702A+AOYUE Int 2702A+AOYUE Int 2702A+AOYUE Int 2702A+AOYUE Int 2702A+AOYUE Int 2702A+
    • AOYUE Int 2702A+
    • Favorite
      Click to buy

    DESCRIPTION SPECIFICATION PACKING LIST

    Features:

    • Microprocessor-controlled ESD safe equipment.
    • 4-in-1 system. Combines hot air gun, de-soldering gun and smoke absorbing soldering iron .
    • Digital offset for easy digital temperature calibration of soldering iron from –70 to +70 degrees.
    • All digital display and control of hot air gun, solder iron and de-soldering gun temperature.
    • Digital control of air pressure with airflow gauge visual feedback for precision adjustment.
    • User-programmable sleep timers for hot air gun and solder iron.
    • Auto-cooling system that protects the components from excessive heat, prolonging heater life.
    • Lead free compatible soldering iron with composite tip design ensuring fast heat up and excellent thermal recovery, with a wide array of tips.
    • Compatible with our full line of nozzles to suite different SMT devices.
    • Wide selection of solder iron tips( Lead Free Series Soldering tips) for different soldering requirements.

                                                             SPECIFICATIONS                                                                                                                                                                Specifications are subject to change without prior notice.
    POWER INPUT: available in 110V / 220V
    WEIGHT: 8.50Kg
    MAIN STATION DIMENSION: 188 x 126 x 250 mm
    HOT AIR GUN
    POWER CONSUMPTION: 500W
    TEMPERATURE RANGE: 100°C- 480°C
    HEATING ELEMENT: Metal Heating Core
    PUMP TYPE: Diaphragm pump
    AIR CAPACITY: 23 L/min (max)
    SOLDERING IRON
    POWER CONSUMPTION: 70W
    OUTPUT VOLTAGE: 24V
    TEMPERATURE RANGE: 200°C- 480°C
    HEATING ELEMENT: Ceramic heater
    TIP TO GROUND RESISTANCE: Below 2 Ω
    TIP TO GROUND POTENTIAL: Below 2mV
    DESOLDERING GUN
    POWER CONSUMPTION: 80W
    OUTPUT VOLTAGE: 24V
    TEMPERATURE RANGE: 180°C- 480°C
    HEATING ELEMENT: Ceramic heater
    TIP TO GROUND RESISTANCE: Below 2 Ω
    TIP TO GROUND POTENTIAL: Below 2mV

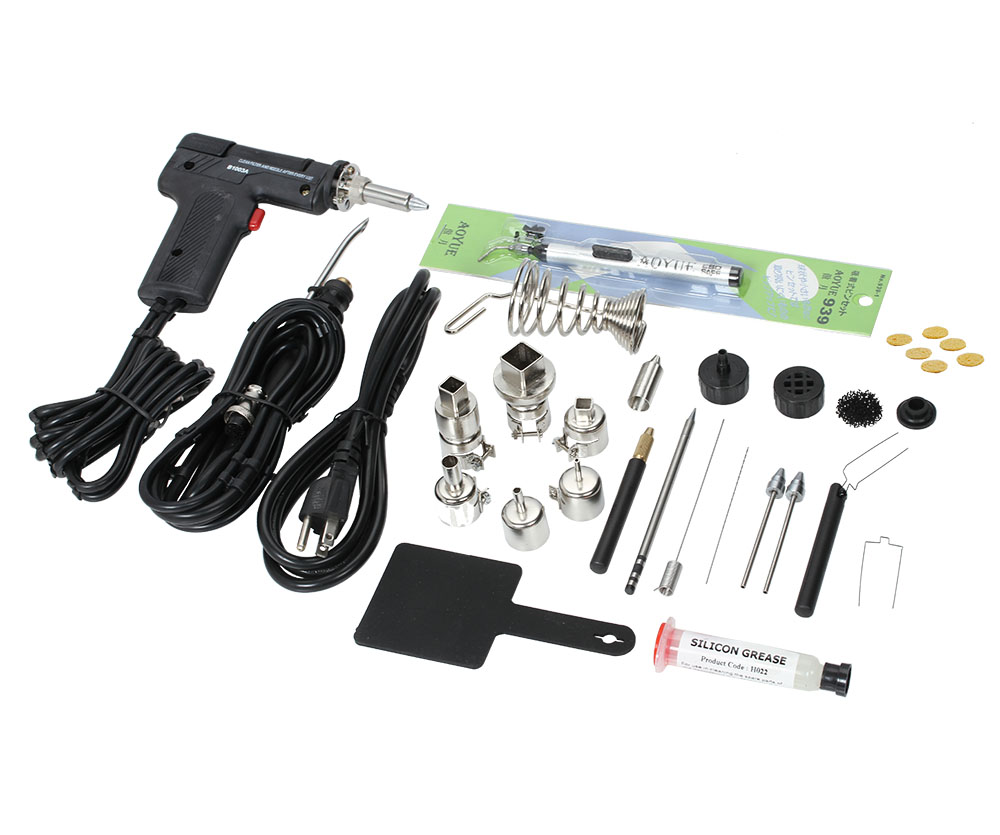

    AOYUE Int 2702A+ Package Content

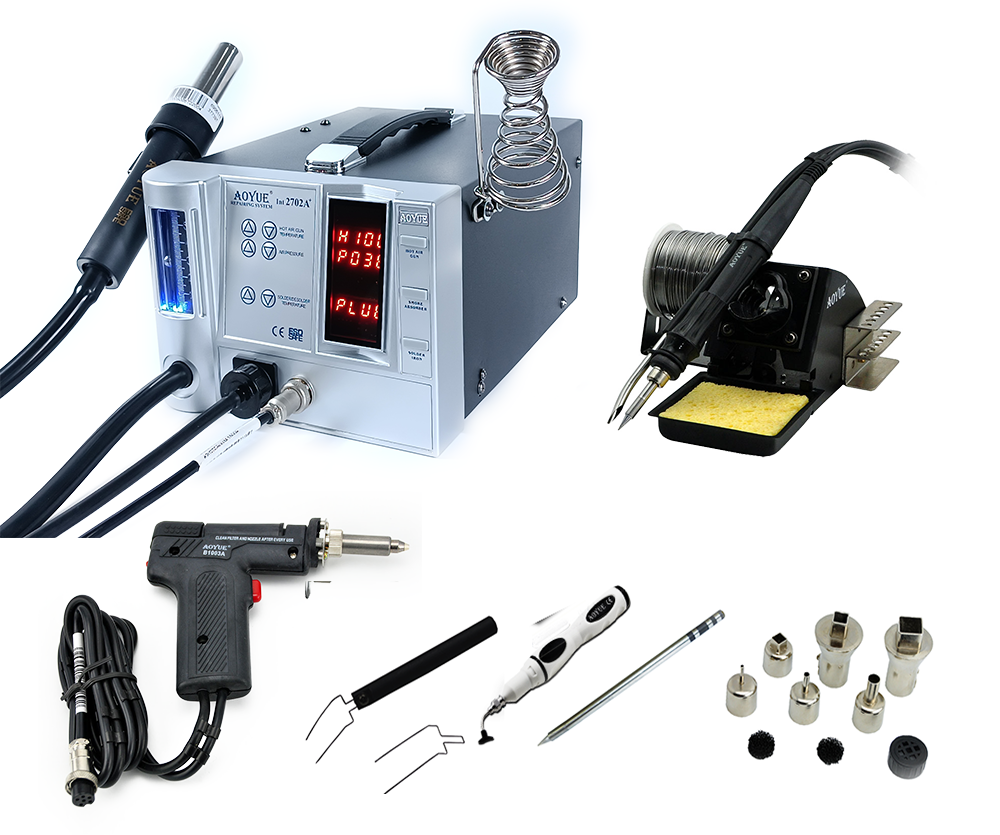

    1 unit Int2702A+ Main Station with Hot Air Gun and holder.
    1 pc. 1124 Air Nozzle
    1 pc. 1130 Air Nozzle (Single 4.4mm)
    1 pc. 1197 Air Nozzle (Single 9 mm)
    1 pc. 1313 Air Nozzle
    1 pc. 30202X Plastic Mesh Cover
    1 pc. 30201X Suction/Vacuum Cover
    1 pc. 30181X Black Filter Pads

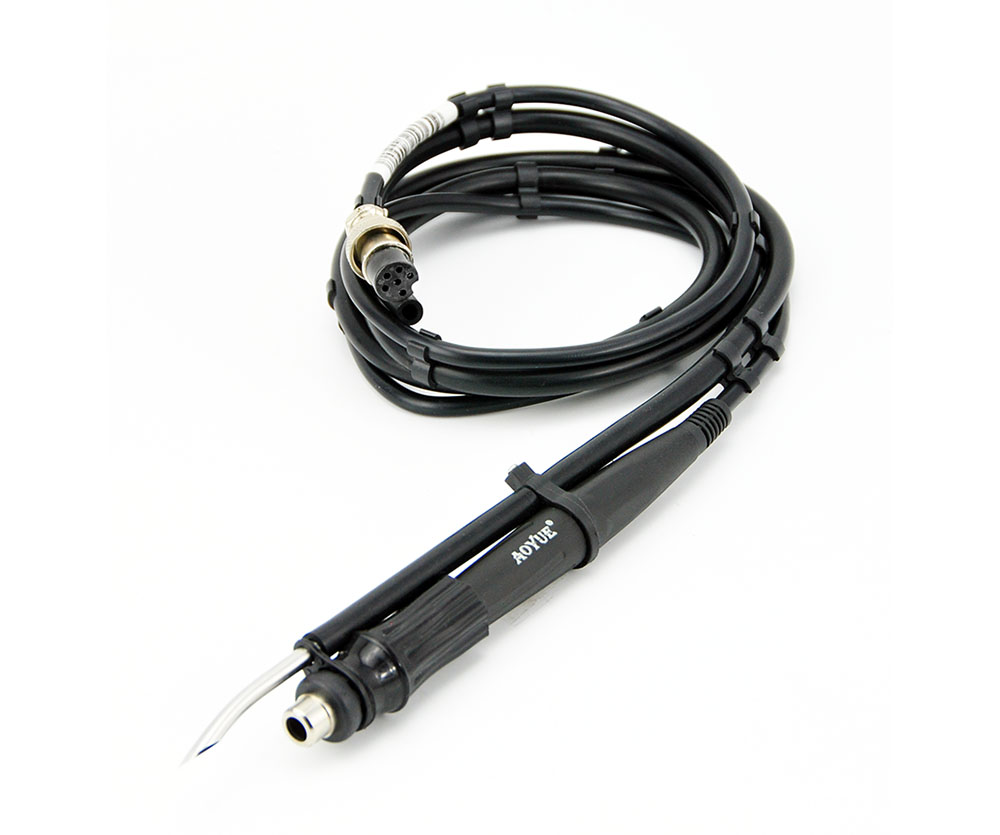

    1 pc. B012 Soldering Iron with Smoke Absorbing function
    1 pc. WQ-2B Soldering Tip*
    1 pc. 30150J Heat Resistant Pad

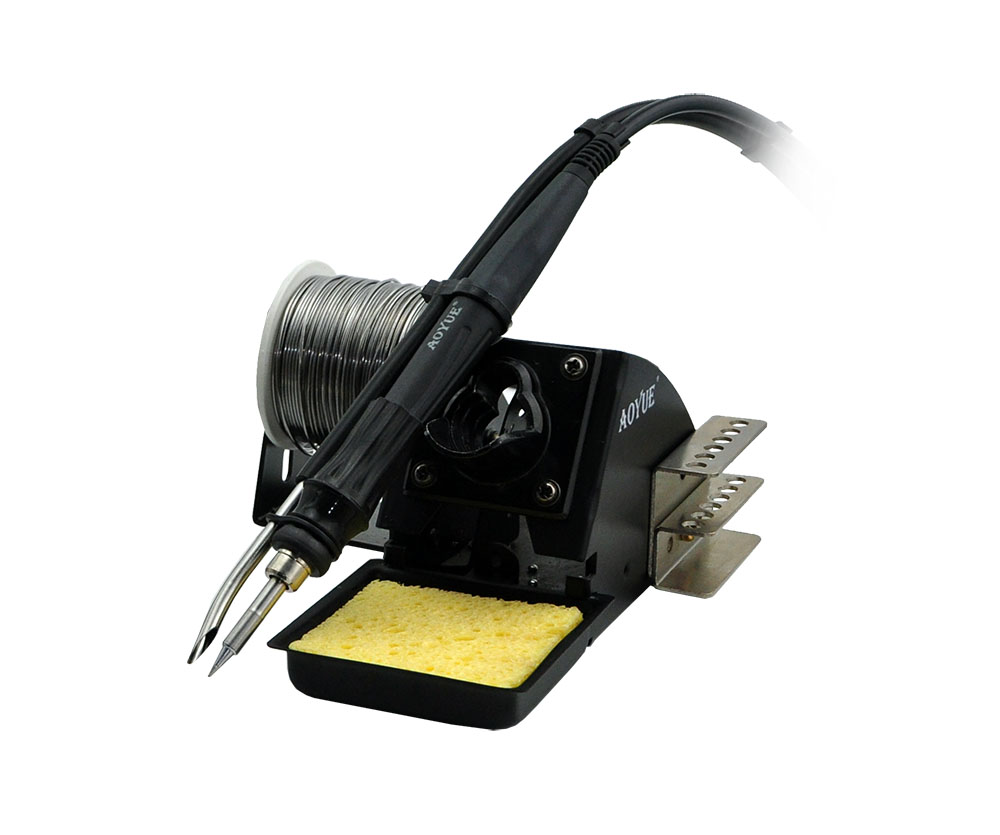

    1 pc. 2660B Soldering Iron Stand**

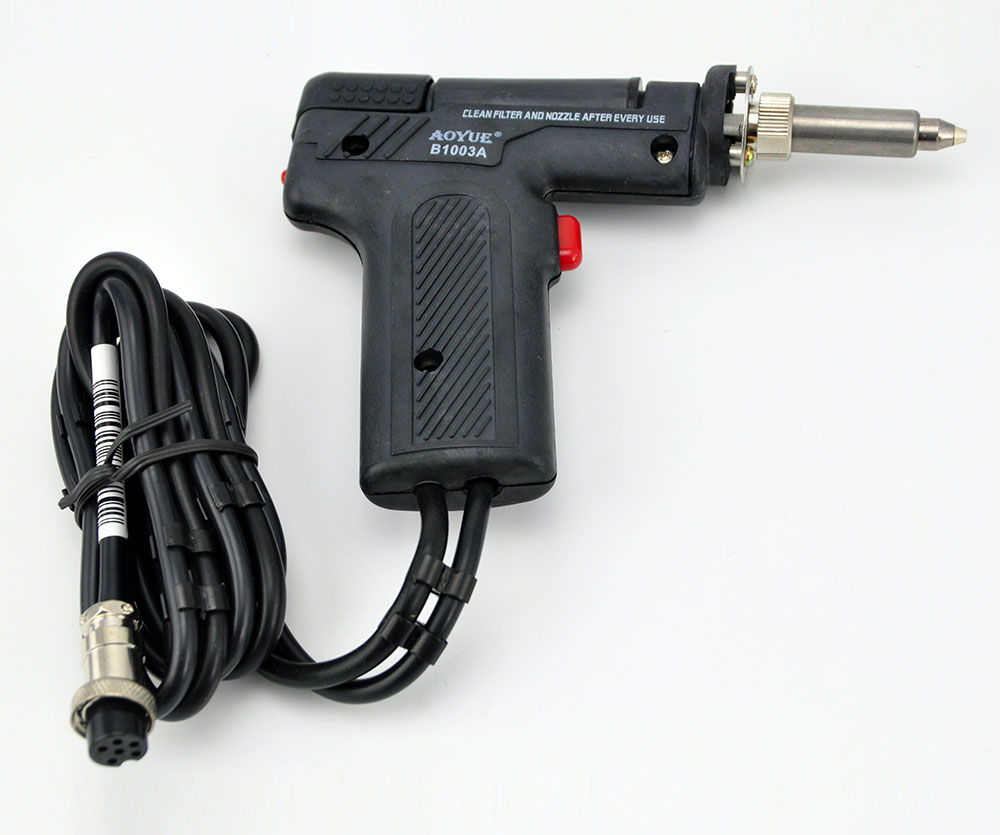

    1 pc. B1003A Desoldering Gun with 301212 tip (1.8mm)
    1 pc. 201413 Desoldering Gun Holder
    1 pc. 302082 Desoldering Tip (1.0mm)
    1 pc. 302092 Desoldering Tip (1.5mm)
    1 pack 3017J Filter Pads (6pcs.)
    1 pc. 201252 Spring Filter
    1 pc. 3024X Spring Filter Cap
    1 pc. 201242 Cleaning Pin
    1 pc. 20178 Cleaning Drill
    1 pc. G001 IC Popper
    1 pc. 939 Vacuum Pen
    1 pc. Power Cord
    1 pc. Instruction Manual
