HOME > PRE-HEATING SYSTEMS > AOYUE INT 883

    AOYUE Int 883AOYUE Int 883AOYUE Int 883AOYUE Int 883AOYUE Int 883

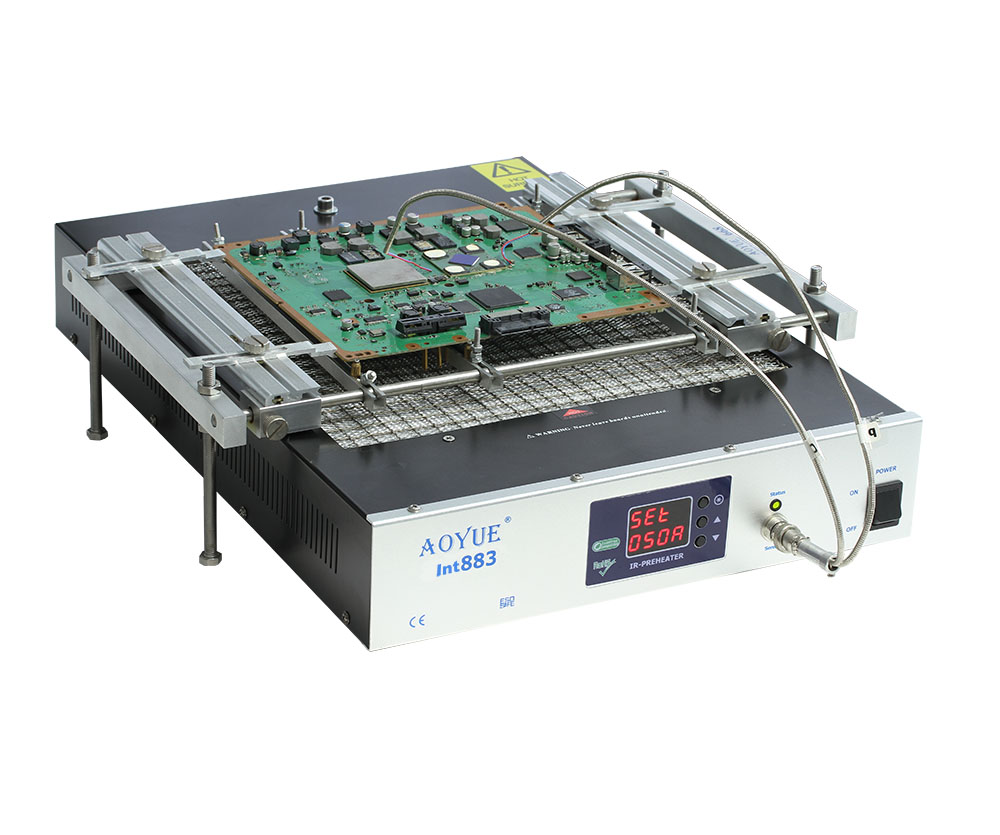

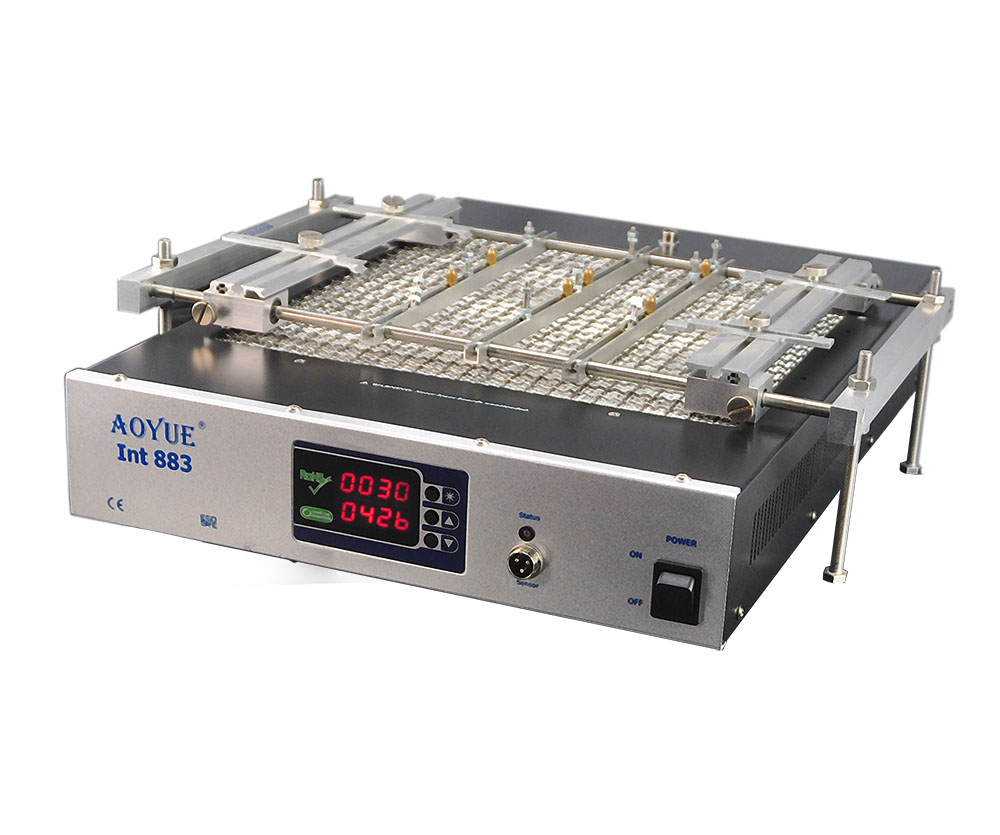

    • AOYUE Int 883
    • Favorite
      Click to buy

    DESCRIPTION SPECIFICATION PACKING LIST

    Features:

    • Microprocessor controlled ESD safe unit.
    • Utilizes quartz infrared heat technology.
    • Three operating modes to fit different reworking tasks.
    • Closed loop temperature control and monitoring.
    • Digital controls and display of set/actual temperatures.
    • Compatible with either hot air or IR top heating systems.
    • 310 x310 mm class leading pre-heating area fits large PCBs and minimizes board warping.
    • External temperature sensors allows more accurate monitoring of board temperature.
    • Profile adjustment functionality for automating reworking tasks under user defined temperature and time settings.
    • Multi-point board holder, a versatile PCB holder with board stabilizing screws and adjustable side grips to provide a secure fit for various type of board size and shapes.

    SPECIFICATIONS
     Specifications are subject to change without prior notice.
     POWER INPUT:  available in 110V / 220V
    WEIGHT: 13.00Kg
    MAIN STATION DIMENSION:  380 x 525 x 100 mm
    Pre-Heating Station
    POWER CONSUMPTION:  1500W
    TEMPERATURE RANGE:  50°C- 400°C
    HEATING ELEMENT:  Quartz Infrared
     HEATING SURFACE:  310 x 310 mm



    AOYUE Int 883  Package Content

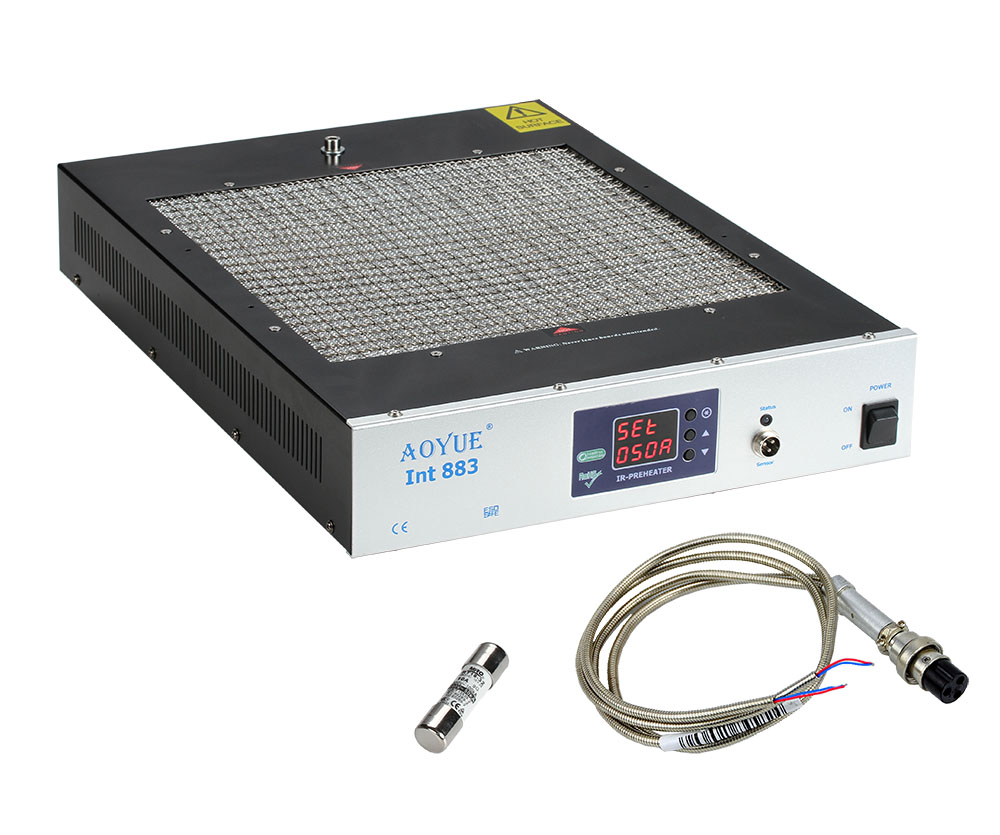

    1 unit Int 883 Main Station

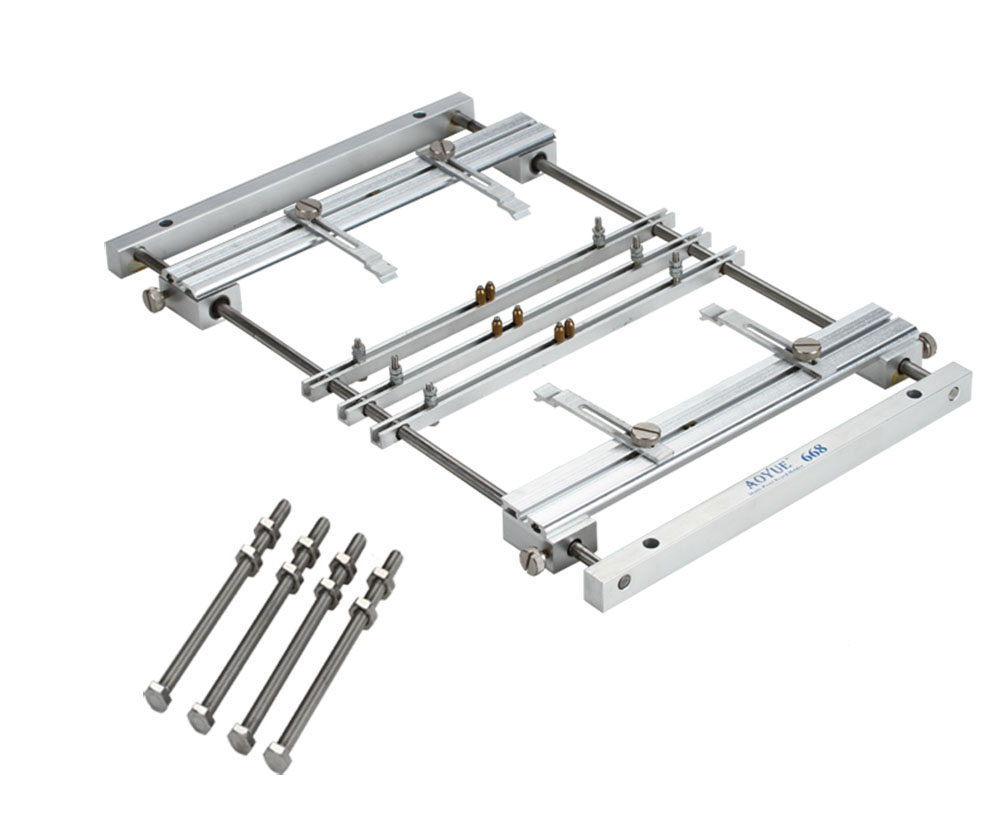

    1 pc. 668 PCB Holder

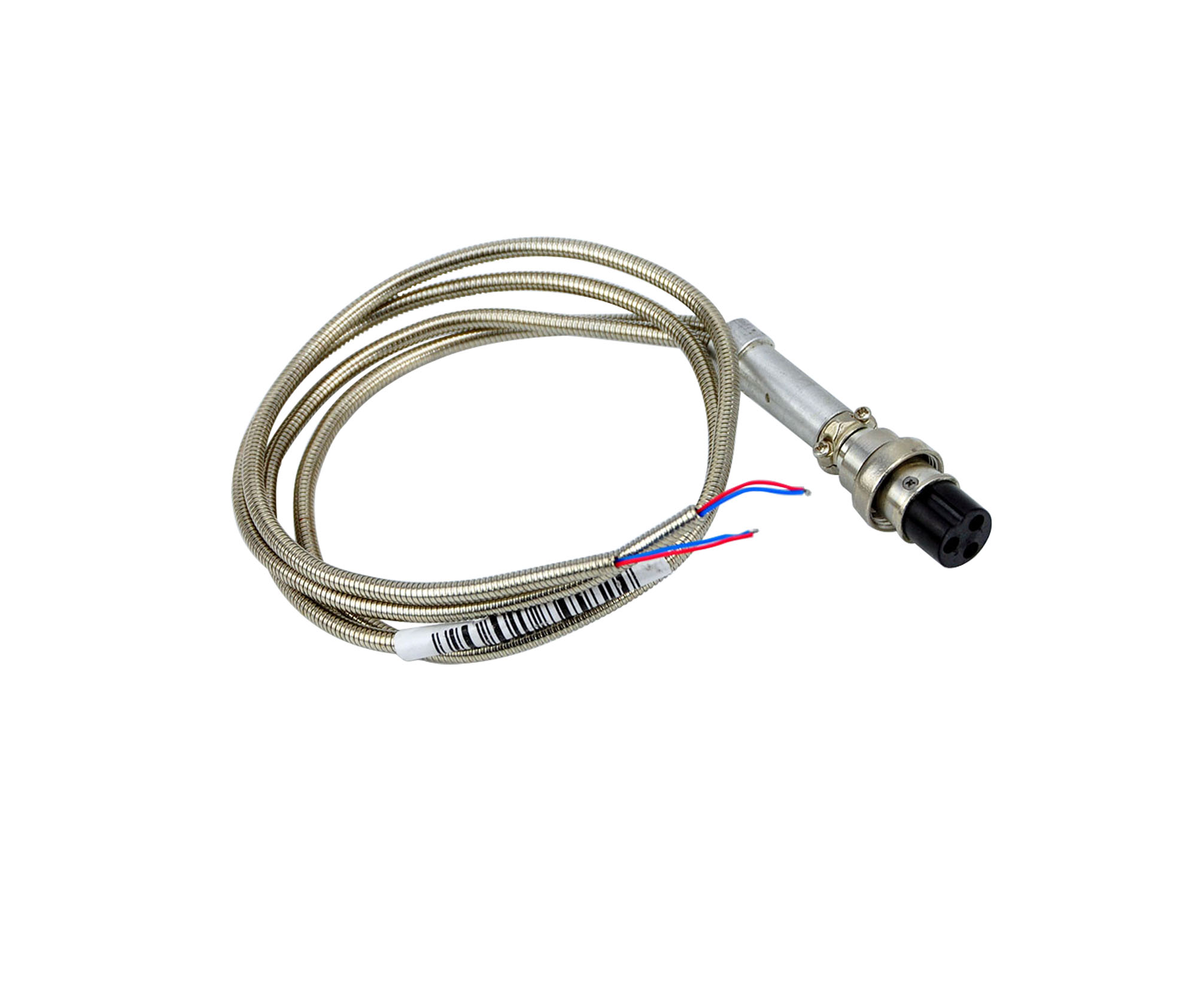

    1 pc. Sensor
    1 pc. Power Cord
    1 pc. Instruction Manual
