HOME > INFRARED REWORKING SYSTEMS > AOYUE INT 710+

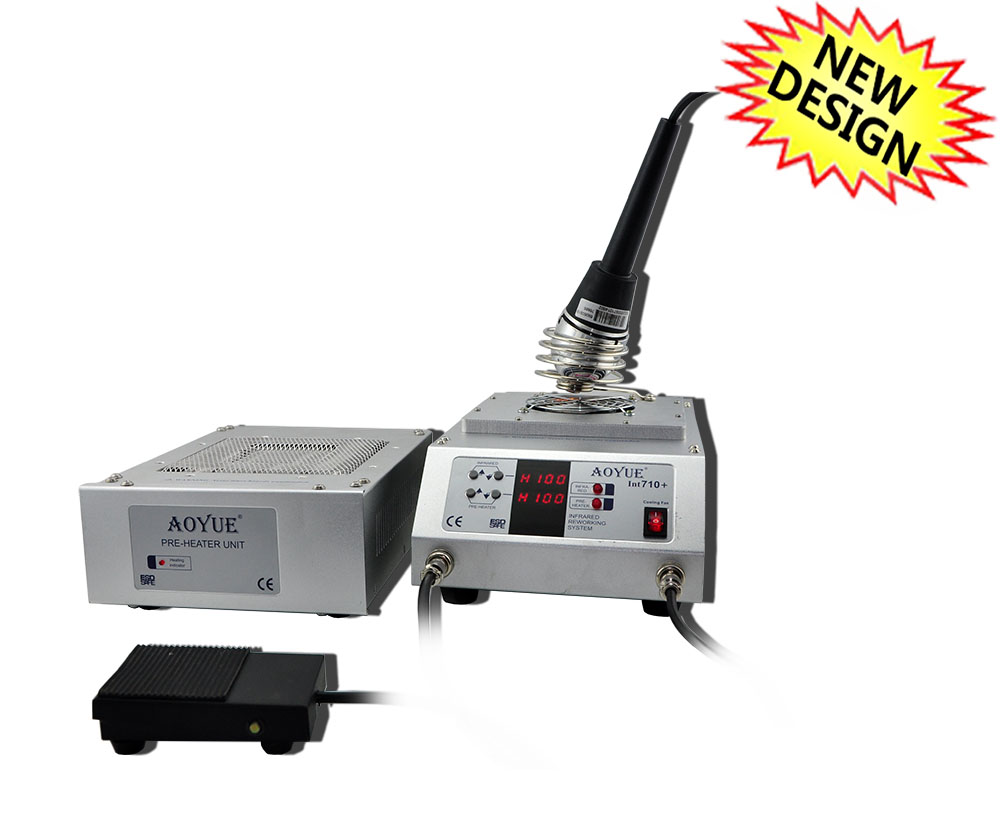

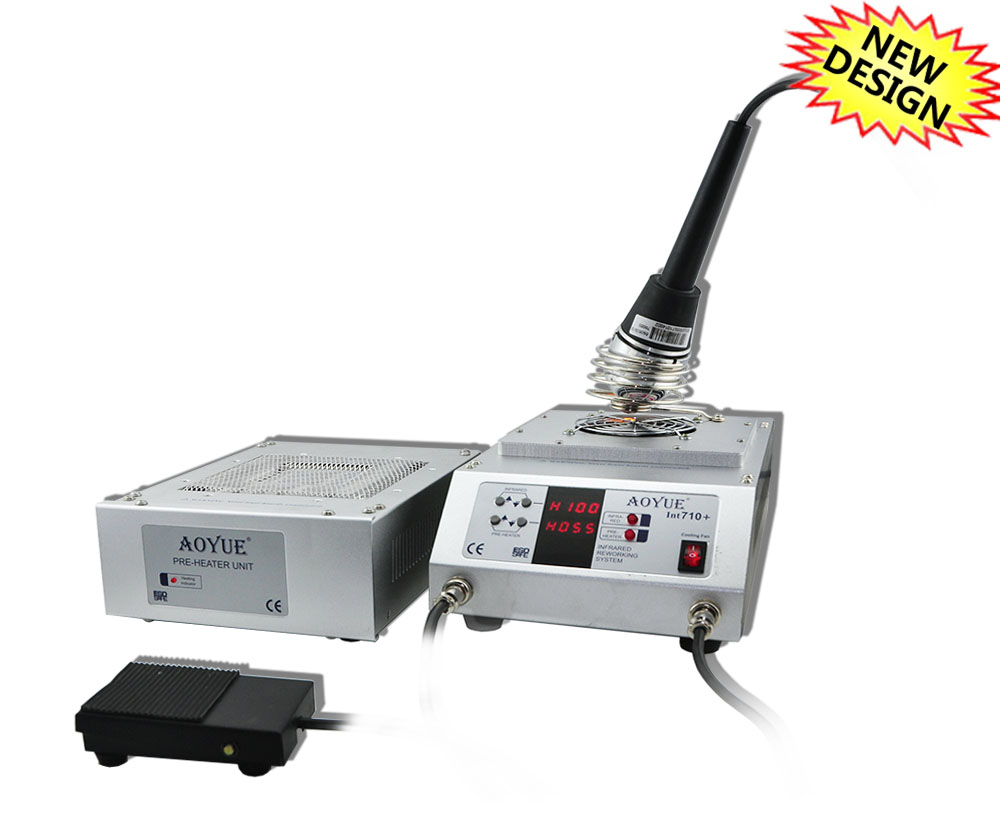

    AOYUE  Int 710+AOYUE  Int 710+AOYUE  Int 710+AOYUE  Int 710+AOYUE  Int 710+
    • AOYUE Int 710+
    • Favorite
      Click to buy

    DESCRIPTION SPECIFICATION PACKING LIST

    Features:

    • Microprocessor-controlled ESD safe unit.
    • Utilizes infrared heat wave technology.
    • Easy-to-adjust IR and pre-heat temperatures with digital display.
    • Embedded pre-heating station.
    • Widely used for reworking BGAs, micro BGAs, QFPs, PLCCs, SOICs,

    small SMD, and other circuit board components.

    • Unique, innovative mechanical design for more precise soldering;

    eliminates the displacement of surrounding components brought

    by unnecessary or accidental movements during reworking.

    • Integrated hands-free IR gun.
    • Centigrade and Fahrenheit switchable.
    SPECIFICATIONS
    Specifications are subject to change without prior notice.
    WEIGHT:  8 Kg
    MAIN STATION DIMENSION: 192 x 100 x 325 mm
    PRE-HEATER
    POWER CONSUMPTION:   500W
    TEMPERATURE RANGE:   100°C- 450°C  / 212°F - 842°F
    HEATING ELEMENT:   Quartz Crystal
    INFRARED SOLDERLIGHT GUN
    POWER CONSUMPTION:     200W
    TEMPERATURE RANGE:    100°C - 420°C /212°F - 787°F
    HEATING ELEMENT:     Halogen Light Source



    AOYUE Int710+  Package Content

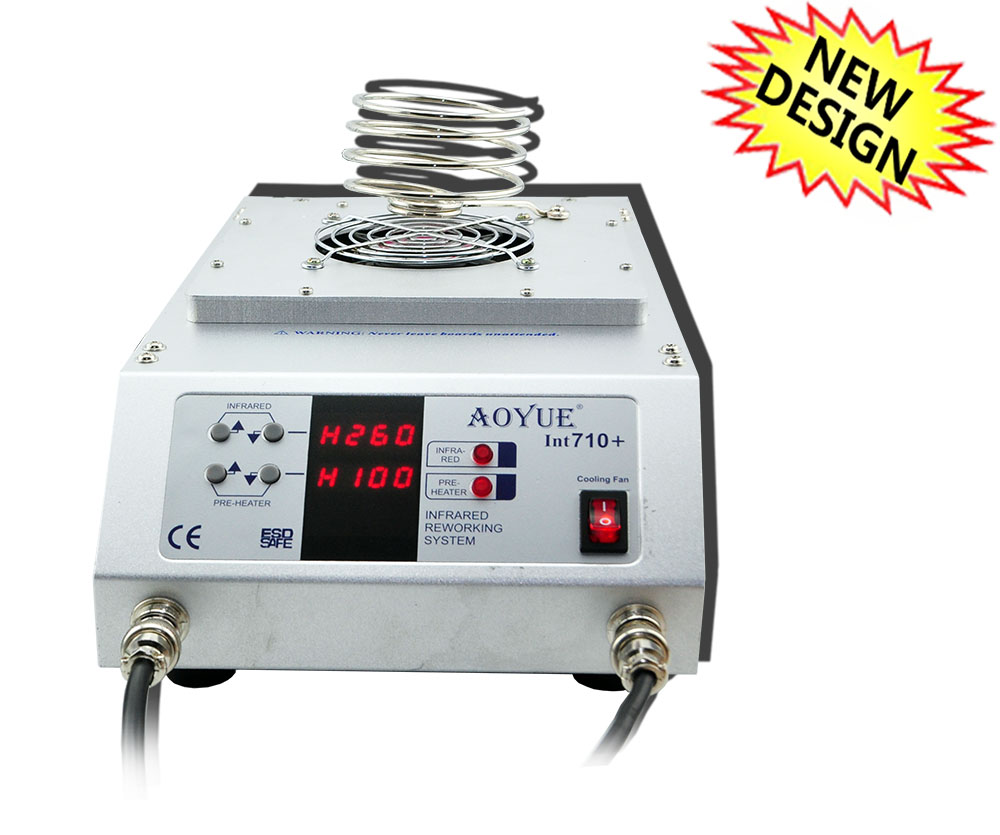

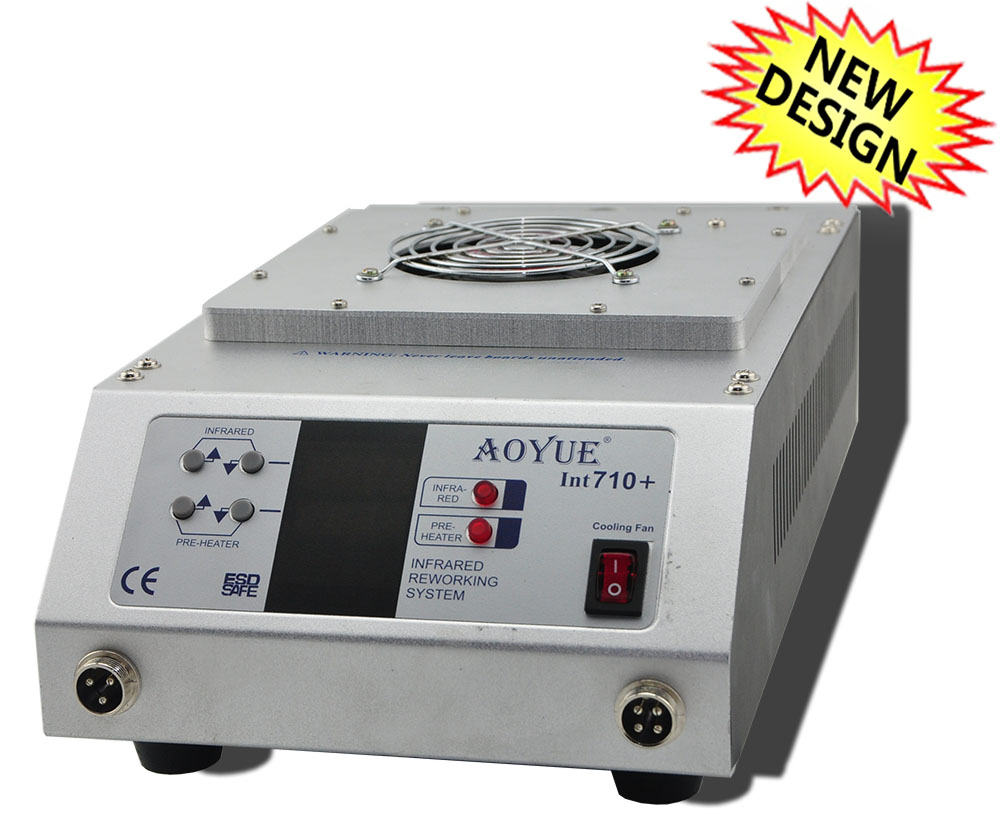

    1 unit Int710+ Main Station

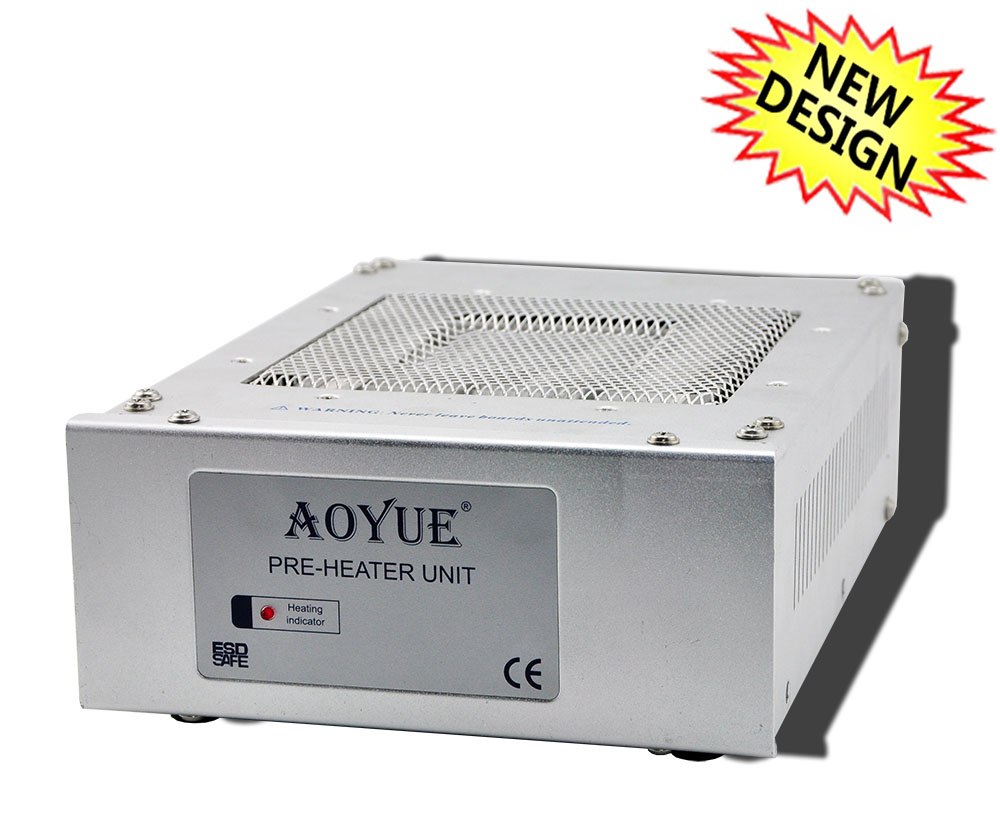

    1 unit Preheating station
    1 unit Cooling stand
    1 pc. Foot switch
    1 pc. Infrared soldering gun
    1 pc. PCB holder
    1 pc. Welding goggles
    1 pc. Power Cord
    1 pc. Instruction Manual
