    • AOYUE 8800
    • Favorite
      Click to buy

    DESCRIPTION SPECIFICATION PACKING LIST

    Features:

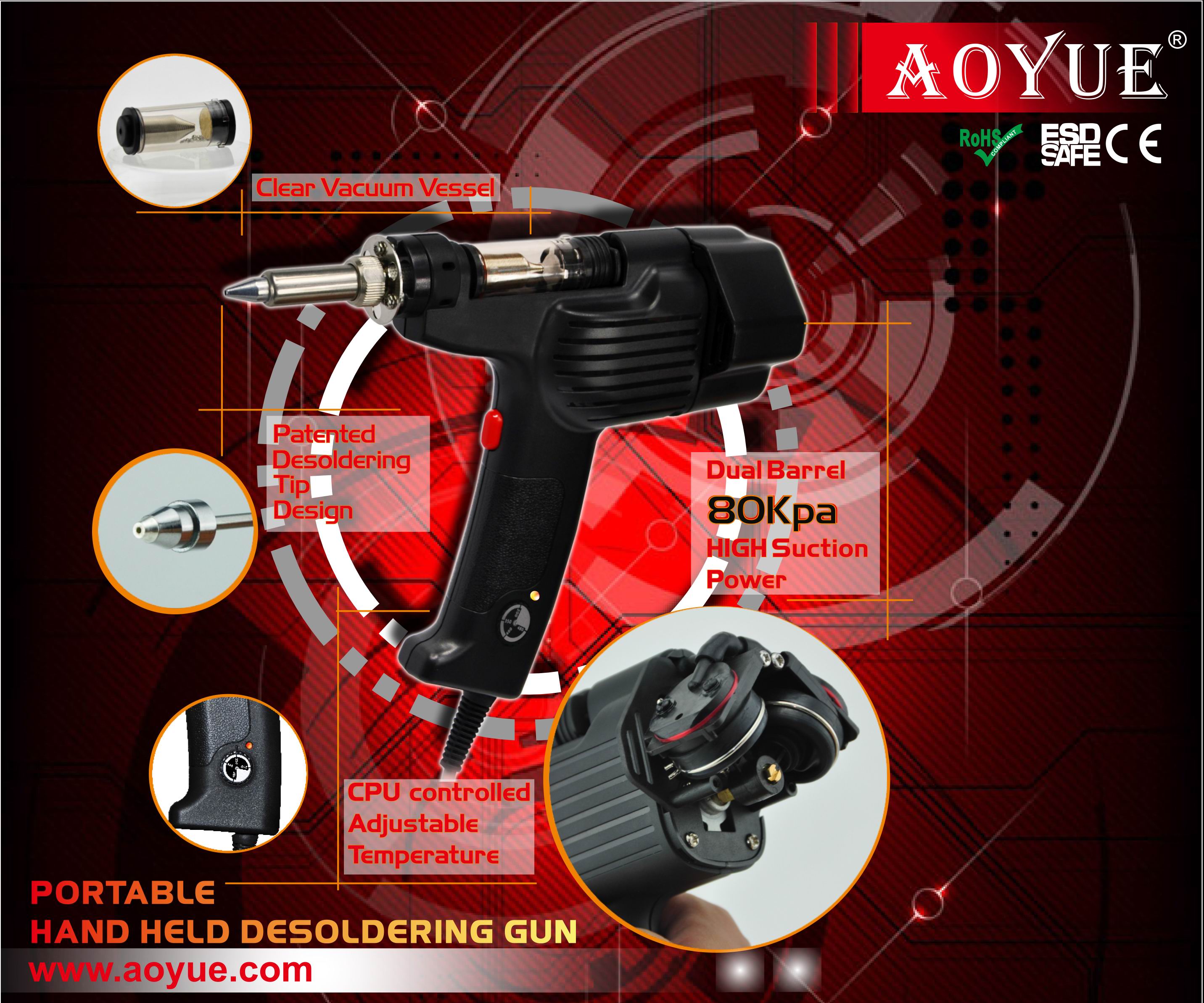

    • Portable desoldering tool with high quality travel case for onsite servicing and repair.
    • Dual barrel pump with 80Kpa of high suction power.
    • Clear filter pipe allows easy monitoring of waste solder level.
    • High quality PTC heater, fast heat up and durable.
    • Adjustable and stable temperature with closed looped electronic controls.
    • Tip to handle distance of 56mm.
    • Comes with a variety of tip sizes.
    SPECIFICATIONS
     POWER INPUT:  available in 110V / 220V
    WEIGHT: 3 Kg
    MAIN STATION DIMENSION:  75 x 180 x 222 mm
    DESOLDERING GUN
    POWER CONSUMPTION:  150W
     TEMPERATURE RANGE:  250°C- 480°C
    Heating Element:  Ceramic heater
    PUMP TYPE:  Vacuum pump
    TIP TO GROUND RESISTANCE:  Below 2 Ω
    TIP TO GROUND POTENTIAL:  Below 2mV

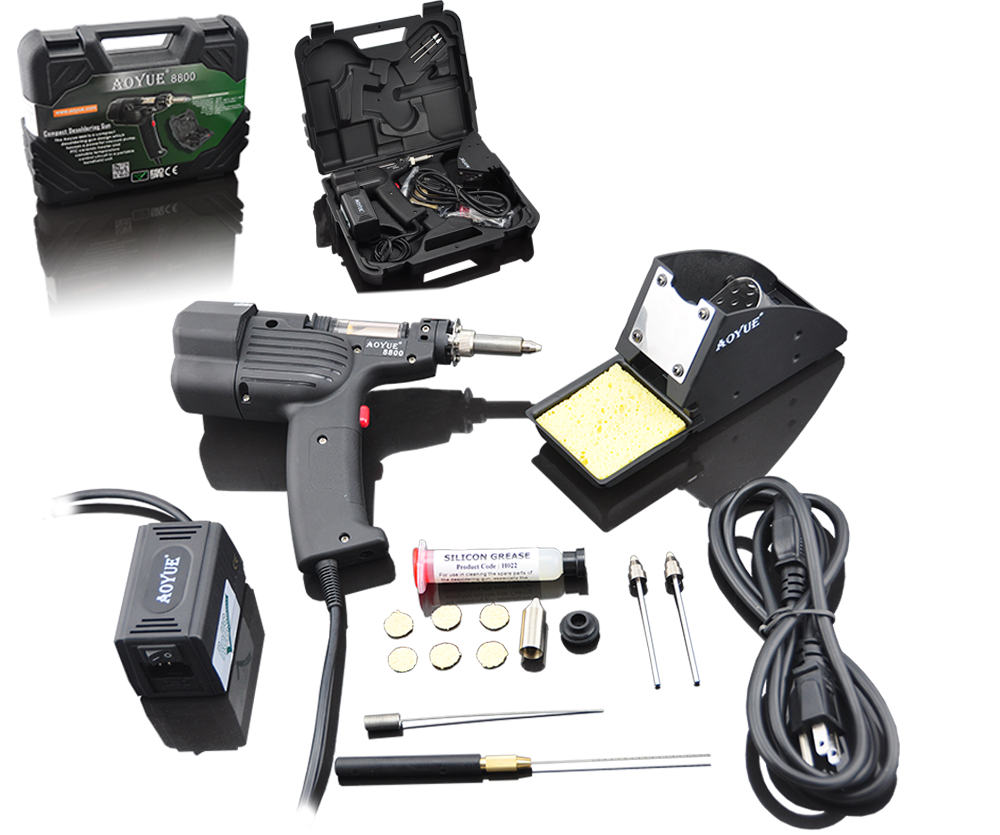

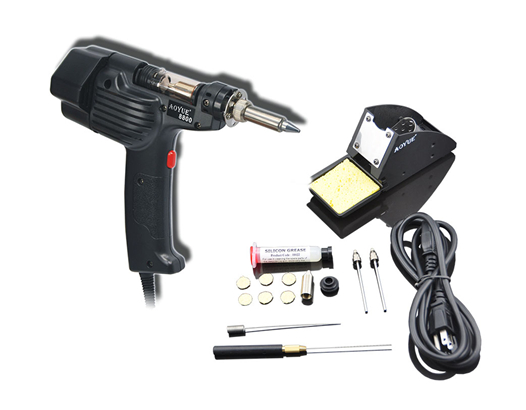

    AOYUE 8800  Package Content
    1 unit 8800 Desoldering Gun with DT-1.8 tip (1.8mm)
    1 pc. DT-1.2 Desoldering Tip (1.2mm)
    1 pc. DT-1.5 Desoldering Tip (1.5mm)
    1 pc. 2668 Desoldering Gun Stand
    1 pack Desoldering Gun Stand Parts (Sponge Tray ,Sponge ,Securing Screw)
    1 pc. 301252 Spring Filter
    1 pc. 201242 Cleaning Pin
    1 pc. 20178 Cleaning Drill
    1 pc. 3024X Spring Filter Cap
    6 pc. Filter Pad (yellow round filters)
    1 pc. Temperature Sticker Guide in Fahrenheit
    1 pc. Power Cord
    1 pc. Instruction Manual
