Features:
-
The portable and lightweight design of the system save precious desktop
-

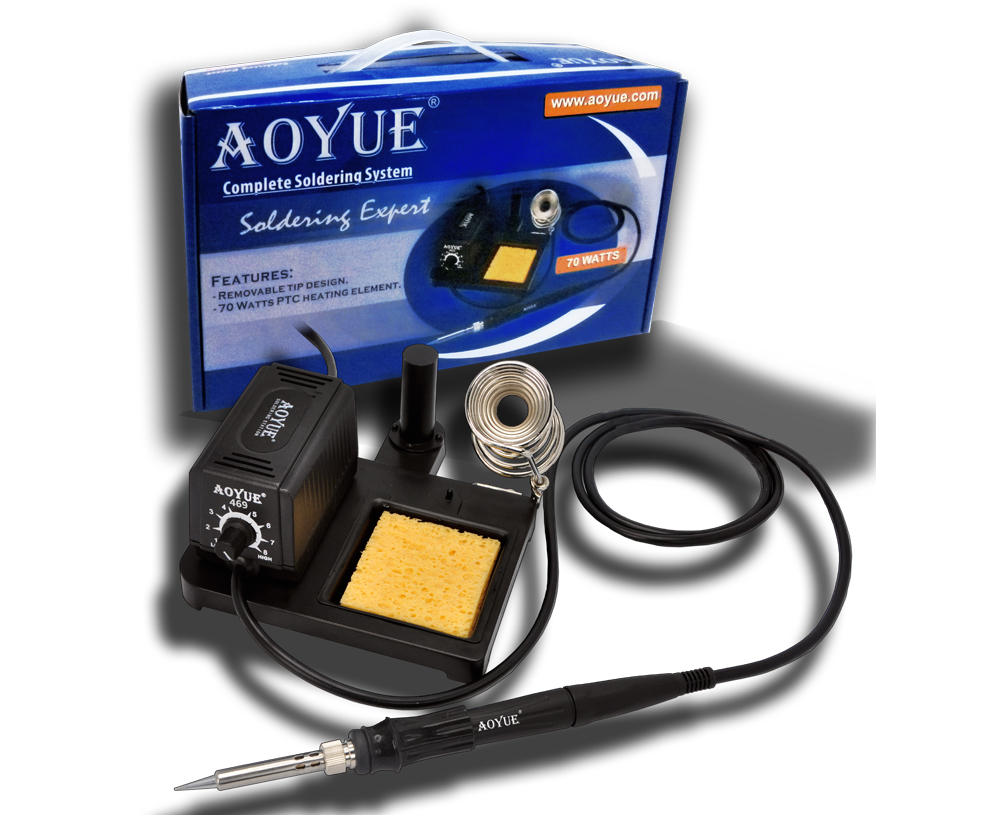

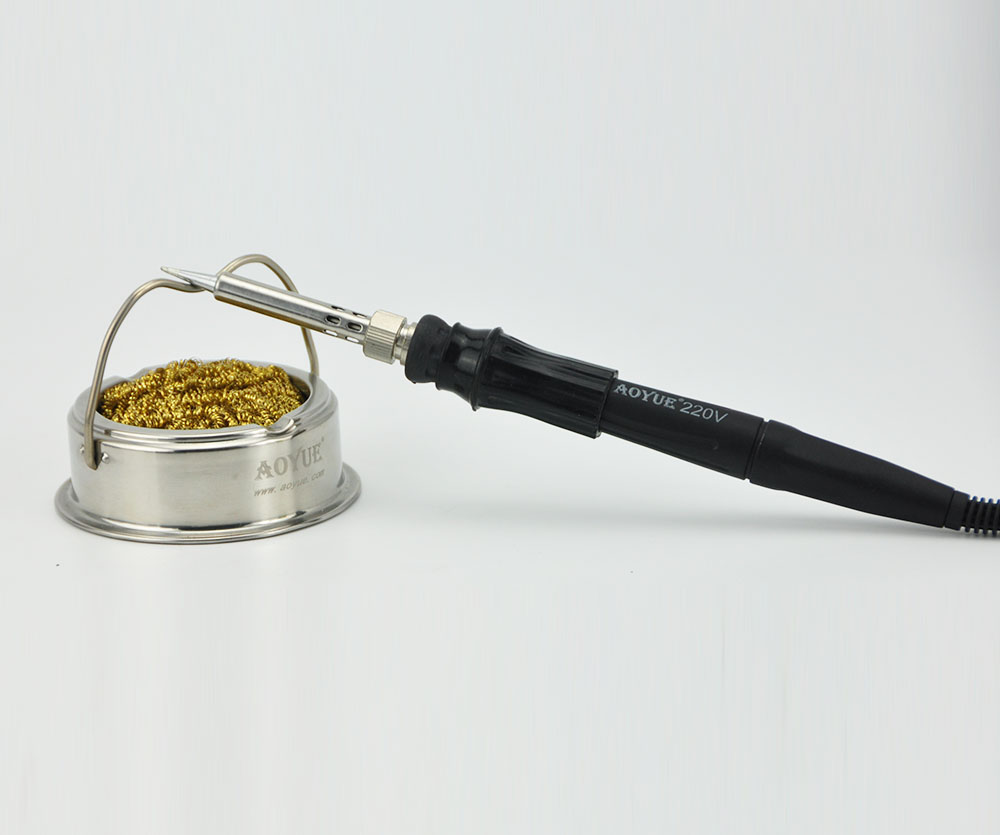

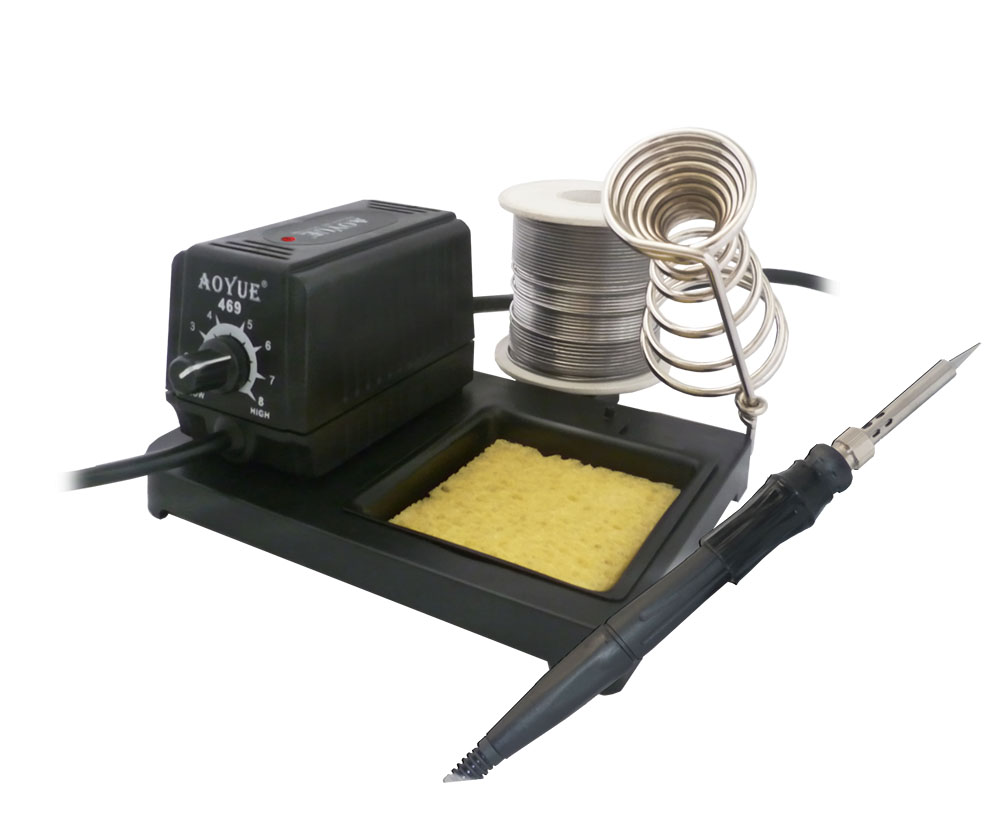

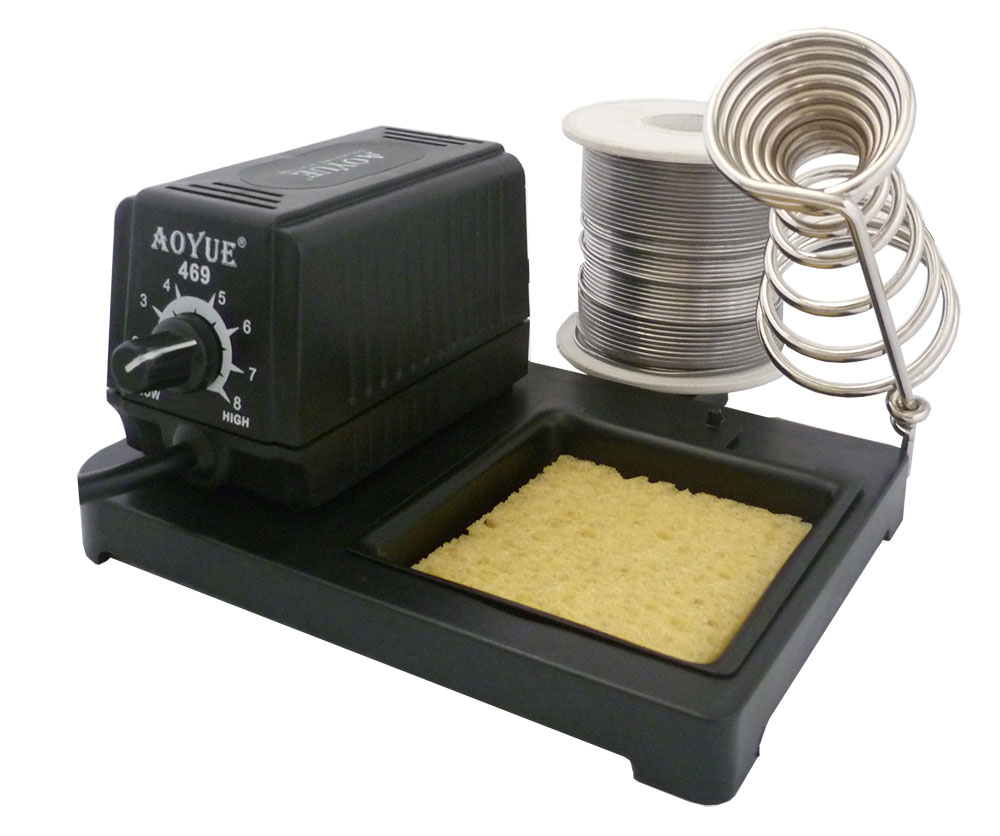

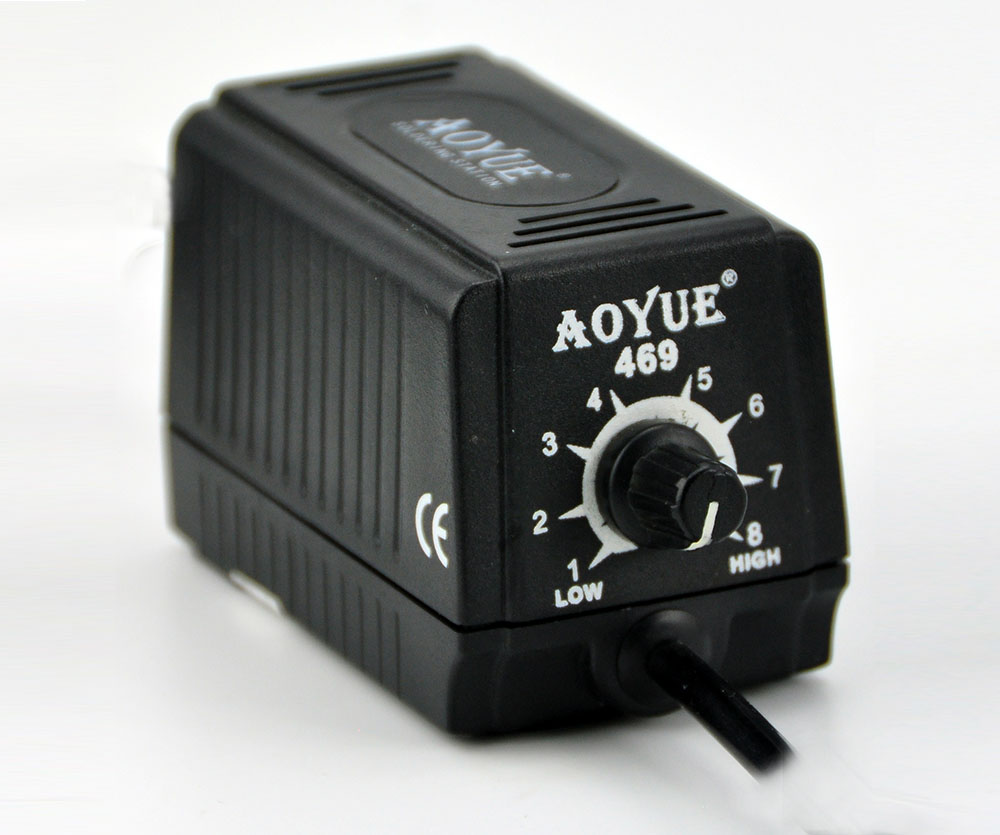

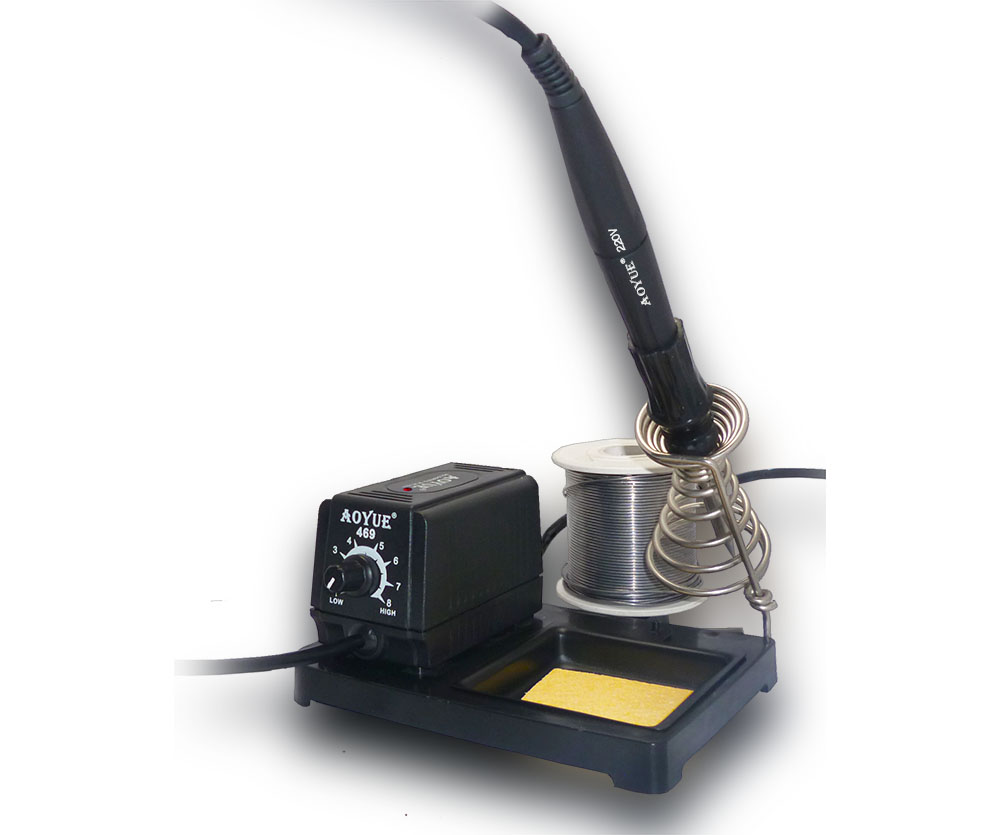

The Aoyue 469 is a high performance soldering iron.
-
It is equipped with a fast acting PTC ceramic heater suitable for advance soldering needs.
-
The separate tip and heater design offers cost efficiency and easy replacement of tips.
-
space and allows easy packing for occasions when offsite soldering is required.
SPECIFICATIONS | |
POWER INPUT: | available in 110V / 220V |
WEIGHT: | 235 g |
MAIN STATION DIMENSION: | 51 x 59 x 85 mm |
SOLDERING IRON | |
POWER CONSUMPTION: | 60W |
OUTPUT VOLTAGE: | 220V |
TEMPERATURE RANGE: | 300°C- 480°C |
HEATING ELEMENT: | PTC Ceramic heater |
TIP TO GROUND RESISTANCE: | Below 2 Ω |
TIP TO GROUND POTENTIAL: | Below 2mV |
AOYUE 469 Package Content | |
1 unit | 469 Main Station |
1 PC | Spring Type Iron Holder (with securing screw) |
1 PC | 469 Platform |
1 PC | Sponge Holder with Cleaning Sponge |
1 PC | Solder Spool Stand |
1 PC | Instruction Manual |
