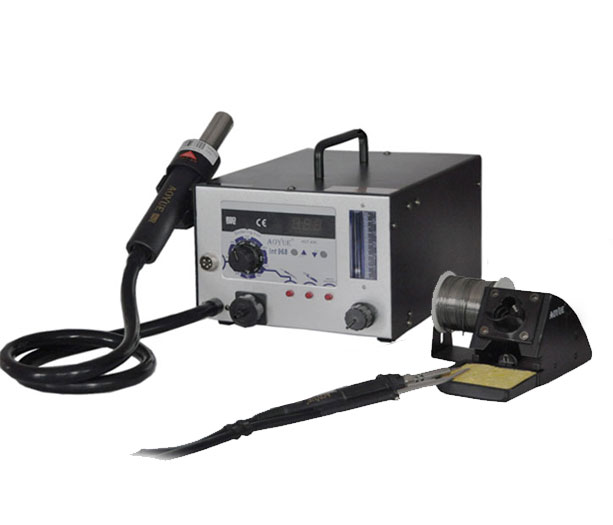

- AOYUE Int 968
DESCRIPTION SPECIFICATION PACKING LIST
Features:
- Microprocessor-controlled ESD safe equipment.
- Hot air gun, soldering iron and smoke absorber in one package.
- Digital display and control of hot air actual/set temperature.
- Knob type airflow control with airflow gauge.
- Analog type control of soldering iron temperature.
- Unique safety feature system automatically shuts down the hot air gun if left unattended. Cool down mode protects and prolongs hot air gun heating element life.
- Highly efficient built in smoke extractor that absorbs the fumes created at the source.
- Wide selection of solder iron tips for different soldering requirements.
- Wide selection of solder iron tips( T Series Soldering tips) for different soldering requirements.
|
SPECIFICATIONS
Specifications are subject to change without prior notice.
|
|
| POWER INPUT： | available in 110V / 220V |
| WEIGHT： | 5.88 Kg |
| MAIN STATION DIMENSION： | 188 x 246 x 126 mm |
| HOT AIR GUN | |
| POWER CONSUMPTION： | 550W |
| TEMPERATURE RANGE： | 200°C- 480°C |
| HEATING ELEMENT： | Metal Heating Core |
| PUMP TYPE： | Diaphragm pump |
| AIR CAPACITY： | 23 L/min (max) |
| SOLDERING IRON | |
| POWER CONSUMPTION： | 35W |
| OUTPUT VOLTAGE： | 24V |
| TEMPERATURE RANGE： | 200°C- 480°C |
| HEATING ELEMENT： | Ceramic heater |
| TIP TO GROUND RESISTANCE： | Below 2 Ω |
| TIP TO GROUND POTENTIAL： | Below 2mV |
| AOYUE Int 968 Package Content | |
| 1 unit | Int968 Main Station with Hot Air Gun |
| 1 pc. | Air Nozzles (1124，1130，1196, 1197，1313） |
| 1 pc. | B003A Soldering Iron with Tip |
| 1 pc. | 2660 Soldering Iron Holder with Solder Wire Stand |
| 1 pc. | Z003 Hot Air Gun Holder |
| 1 pc. | G001 IC Popper |
| 1 pc. | 2 pcs. Filter Pads |
| 1 pc. | Power Cord |
| 1 pc. | Instruction Manual |
